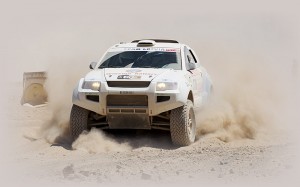

OSCar eO at Dakar 2012

OSCar eO at Dakar 2012ar

The OSCar eO is the world’s first electric car to compete (and more importantly finish) in three of the world’s toughest off-road rallies covering a total of 18,000 km — “Dakar” and “Silk Way Rally” in 2012, and the “Africa Eco Race” in 2013.

It certainly looks fantastic and has a specification to match it’s credentials.  More pictures are available on the eO flickr page here.

OSCar eO Technical Specification:

  • Gross weight 2800 kg
  • Autonomy up to 1000 km (terrain dependant)
  • OSC tubular spaceframe & suspension
  • Donerre shock absorbers, 2 per wheel
  • Hydraulic disc brakes
  • Hydraulic power steering
  • Water/oil, oil/air and oil/water heat exchangers
  • 6-speed sequential dog-engagement gearbox
  • Limited slip axle drive differentials
  • Permanent Magnet Synchronous Drive Motor with 2 power inverters
    • Torque 440 Nm nominal / 800 Nm peak
    • Power 150 kW nominal / 335 kW peak
    • Recuperative braking
  • Winston Battery Li-ion battery pack with BMS
    • Nominal voltage (160 cells) 512 VDC
    • Nominal capacity 100 Ah
    • Total energy 51.2 kWh
  • Permanent Magnet Synchronous Generator with 1 power inverter
    • Nominal output 80 kW
    • Driven by Nissan VQ35DE IC engine
    • 240 litre safety fuel tank
  • OSC vehicle CAN control
  • 10 kW off-board battery balancer / charger
